Enetics products include monitoring instrumentation and software that target remote assets, urban or rural, to assist you in delivering natural gas safely as well as aiding in regulatory compliance. Designed for affordability and ease of use, the Enetics family of IoT based natural gas monitoring products provide fast alarming capability, accurate long term trending data, secure telemetry, cloud based data storage, and long, unattended battery life.
|
Distribution Network Monitoring Sensors
|
|

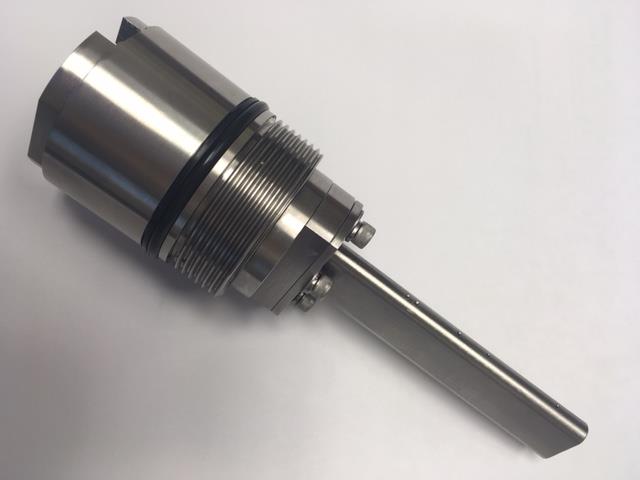

GasComm® Sensor Array
Flow velocity and volume, static pressure, temperature, humidity, vibration - single node
|
|
Click to view GasComm video
|
The Enetics GasComm sensor array is an advanced, patented IoT based flowmeter that monitors the following parameters in a single-node:
-
Bidirectional Flow Volume and Velocity
-
Static Pressure
-
Temperature
-
Humidity
-
Vibration (optional)
Class I, Division 1 intrinsic safety certifications allow GasComm to be installed remotely throughout the natural gas distribution network, acting as an affordable analytic safety monitor.

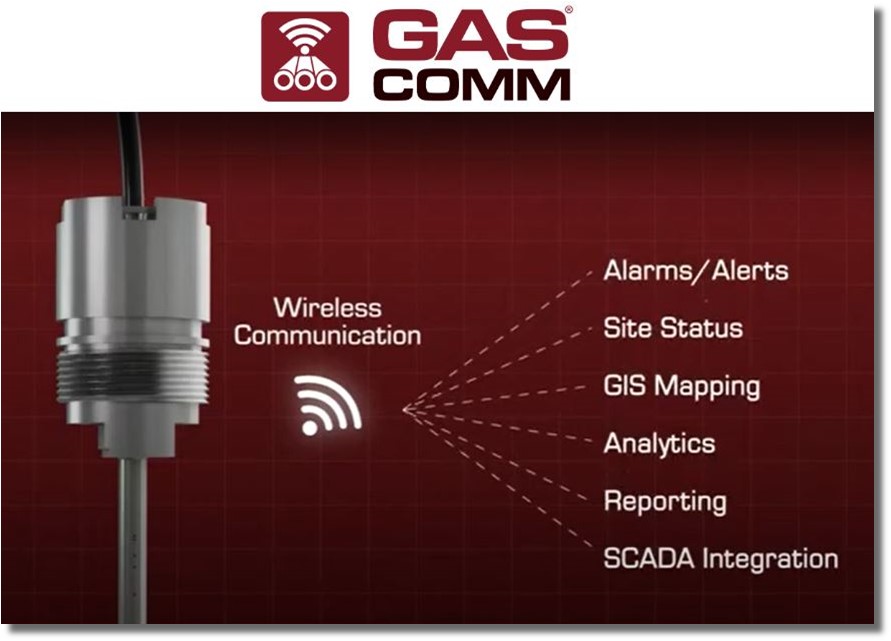

GasComm data can be captured by:
- The Enetics GasTrack RTU, providing cellular telemetry, cloud-based storage, fast alarm notifications, and a five year battery life
- The Enetics GasComm Control Module (GCM) which interfaces to utility SCADA RTU's via simple Modbus485 polling.
GasComm can be deployed in all remote points of a network (blind spots, end-of-line, non-SCADA critical points) to monitor user-defined alarm conditions and trend day-to-day performance. GasComm is an excellent way to enhance your Distribution Integrity Management Programs (DIMP), providing an affordable and reliable means of better understanding the daily performance and readiness of your gas distribution steel or PE pipelines and improving situational awareness to minutes rather than hours or days.
Learn More
|
|
|
|
Enetics Pressure/Temperature Sensors
|
 |
The external Enetics high accuracy pressure and temperature sensors are designed for use with the Enetics GasTrack RTU or the GasComm Control Unit (GCM). Wireless, battery powered telemetry and fast alarm notifications provide a reliable means of monitoring single or dual channel pressure sites that are located remotely without the need for power drops or communication network installs.
The sensors can also be polled by utility SCADA RTU's when using the GCM, providing a secure means of monitoring pressure and temperature at SCADA sites.
A wide variety of full scale pressures are available, and the sensors are fully IS certified to Class1, Division1 standards. When combined with the Enetics GasTrack RTU or Gas Control Module (GCM), these external sensors provide a simple and affordable way to remotely monitor pressure and temperature throughout your natural gas distribution system without the need for power drops or radio networks.
|
|
