GasTrack Recording Telemetry Unit

  Products   >   Product List   >   Category   >   GasTrack Recording Telemetry Unit

GasTrack Remote Telemetry Unit (RTU)

Wireless, battery powered natural gas IoT remote telemetry unit for monitoring:



  • Bidirectional flow volume and velocity

  • Static pressure

  • Temperature

  • Humidity

  • Contact Closure

  • Vibration

If you need ongoing awareness beyond the jobsite, Enetics offers GasTrack, a rugged, battery-powered RTU designed for secure remote pressure and temperature tracking across your distribution system.

GasTrack delivers fast alarm notifications and accurate trend data to help you maintain system stability and identify emerging issues earlier, and it can also be used to track slam shut valve activation. With up to a five-year battery life, GasTrack supports true unattended monitoring without requiring power drops, radio networks, or frequent site visits.

APPLICATIONS

  • Pressure alarm and trend status monitoring
  • Remote slam shut valve position monitoring
  • Ambient temperature monitoring
  • Regulator or gate station pressure monitoring
  • End-of-line monitoring
  • SCADA back up monitoring (power grid impervious)
  • Historical trending
  • Network modeling verification
  • Distribution Integrity Management Program (DIMP) enhancement

BENEFITS

  • Pressure and temperature alarm notifications
  • Slam shut valve activation notifications
  • Unattended remote site monitoring
  • No power drops or radios required
  • Over-the-Air configuration updates
  • Low-to-no site maintenance required
  • Situational asset awareness
  • Encrypted LTE/ Cat M1 cellular telemetry
  • Power outage impervious
  • SCADA independent or API polling

FEATURES

  • Fast alarm notifications
  • Continuous pressure, temperature and contact closure position monitoring
  • Single or dual channel pressure monitoring
  • Internal or external C1, D1 pressure sensors; 1 to 1,500 psi FS
  • EneticsEDGETM analytic User Interface included
  • Up to 5 year battery life, field replaceable
  • Internal LTE/M1 cellular telemetry
  • AES128 data encryption
  • Years of local and cloud data recording
  • User configuration programmability
  • NEMA 6/IP67 packaging
  • Wall or pole/pipe mounting options available
  • Low cost of ownership

The GasTrack remote telemetry unit (RTU) is designed to provide secure and reliable wireless natural gas distribution network monitoring. Fast alarm notifications and accurate trend data assures full situational awareness of emerging distribution network issues.

Sensor Interface

GasTrack may be used as a single or dual channel pressure / temperature recorder. The recorder interfaces with the Enetics family of sensors which includes internal pressure sensors, external pressure sensors and the GasComm® sensor array, a multi-attribute sensor. GasTrack is intended to interface with one or two pressure sensors, one or two GasComm sensors or a combination of the two sensors. This solution provides users with a wide range of monitoring options.

GasTrack can also continuously monitor the position of remote slam shut valves using the optional contact closure channel.  A change in the valve position is considered an alarm event, and a cellular notification will occur immediately.

Slam shut app note.

Wireless Communications / Five Year Battery Life

The GasTrack RTU utilizes global narrowband LTE/M1 cellular network technology to provide secure and reliable data telemetry coupled with a five year battery life. Simple to install, GasTrack eliminates the need for site maintenance and data collection visits, freeing your team to address more pressing issues.

Collecting Data

Attribute data can be sampled at periodic intervals ranging from once per minute to once per 8 hours. Recorded data is uploaded on a periodic schedule, typically once every day, but as frequent as every hour, to the remote Enetics cloud servers. Data hosting can be securely provided by Enetics private cloud (Microsoft Azure) or Customer on-premise servers via API.  Readings that exceed user-defined alarm conditions are identified and vetted at the remote site and text, email, and dashboard notifications are sent out immediately, regardless of the programmed cellular call-in schedule, allowing personnel and control room notifications to approach real time.

Data Analytics

Access to the EneticsEDGE™ User Interface software is included with your remote monitoring system and provides secure access to collected field data from the control room, the office, or from remote on or off-site locations. API polling is also available for SCADA integration. Fielded recorders are monitored with GIS mapping methods and a user configurable analytic dashboard. Alarm and site status, configurations, call-in schedules, sampling rates, and personnel access levels and alarm assignments are easily viewed or updated over the air, eliminating repeated site visits.  Raw sampled data is always sent to and stored in the cloud servers, but EneticsEDGE has the ability to perform data compression ranging from 15 minute averaging to 24 hour averaging for improved data visibility to the Utility.

Packaging

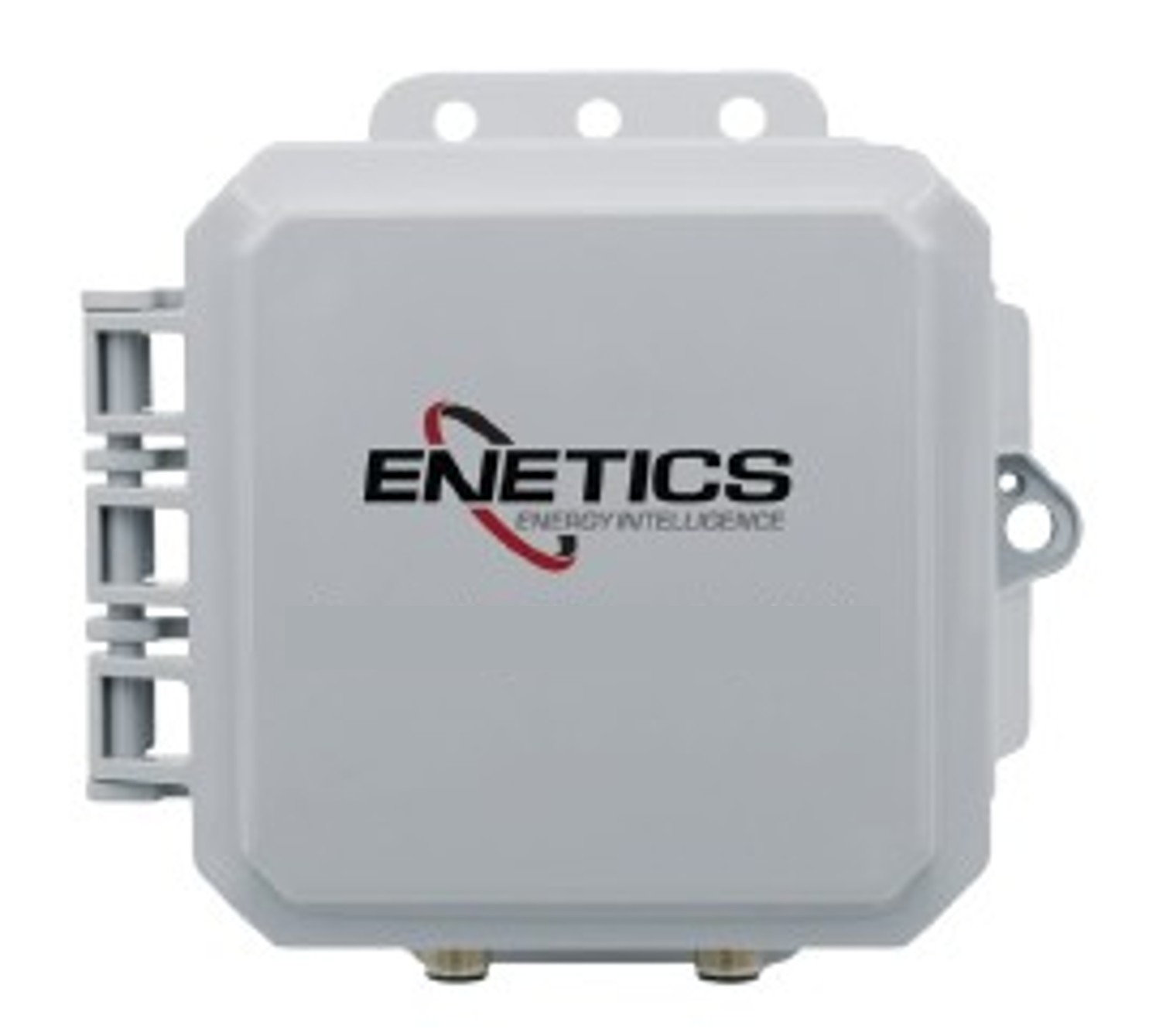

The GasTrack RTU, cellular modem, antenna, and battery are integrated into a small NEMA 6/IP67 polycarbonate enclosure weighing less than two pounds. Provisions for mounting and locking are included. External cellular antennas are available for electromagnetically compromised installations.
